Description

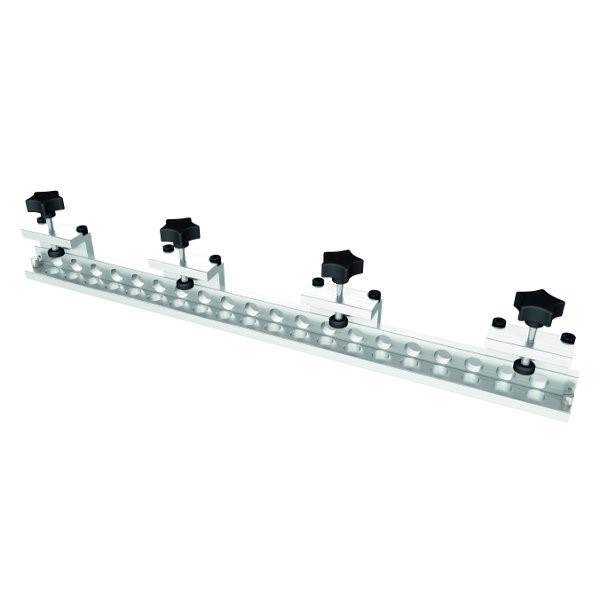

This universal boring jig has been designed for precise and productive manual dowelling of furniture elements and guarantees high precision work and productivity. The holes have been made with a distance of 32mm between one another, in compliance with the European regulations for doweling machine production. Also, the dowel jig fits CMT Ø8mm shank HW drill bits, clamped into a special boring adaptor.
-For edge dowelling and jointing.
-Precise holes.
-Detachable end stops.
-Ergonomic manual tighteners.
-Precise and flat duralumin profile.
TECHNICAL FEATURES:
-Max board width in one tightening: 656mm
-Max. board width: No limits.
-For dowels: Ø8mm.
-For through holes: Ø7mm.
-Hole distance: 32mm.
-Number of Ø18mm holes: 2x20mm.
-Board thickness: 16~40mm.
-Facet (elements lap): 0,8mm.
